2.1. Sampling sites and samples collection

Airborne PM samples were collected in Chang'an University from October 2016 to January 2017 in Xi'an, China (34.23° N, 108.96° E, and 424?m above sea level). The sampling sites are situated between the 2nd and 3rd ring roads in Xi'an City. The sampling sites are 400?m away from the nearest major roads. Surrounding the sites are trees, greenbelts, residential and school buildings with no identified potential industrial pollution sources. An air sampler (ZR-3930, Qingdao, China) was used to collect TSP、PM10 and PM2.5 (see Supplementary Fig. S1) onto 47?mm (diameter) sterilized polycarbonate membranes (Whatman, UK). All experimental vessels underwent high-temperature sterilization at 121?°C in a pressure steam sterilizer (LDZX-40BI, Shang'hai, China) for 20?min.

The environmental indices (PM2.5, PM10, SO2, NO2, CO, O3, and AQI) were obtained from a portable automatic meteorological station (PH-1, Wuhan, China), which was installed near the sample sites. The air quality index (AQI) was generally applied to assess the air quality by China Meteorological Administration (CMA). It derived concentration of six major air pollutants, namely PM2.5, PM10, SO2, NO2, CO and O3. AQI (PM2.5) was assigned to the level of PM2.5 in this study. When the value was >100, which is the limit for Chinese air quality standards Grade II, the environmental condition was categorized as hazy pollution. Based on these criteria, 7 hazy days and 5 non-hazy days were identified from the total of 12 sampling days included in this study. The environmental indices during this sampling period were presented in Table 1.

Table 1

2.2. Fluorescent microscopic analysis of bioaerosols

The sampler was used with a flow rate of 16.7?L/min, and a duration of 15?min was set for each fluorescent sample of PM2.5, PM10 and TSP. After sampling, the polycarbonate membranes with bioaerosols were immediately transferred to 250?mL Erlenmeyer flasks containing 30?mL of phosphate buffer and 3?mL of Tween-80 solution, followed by shaking at 120?rad/min for 20?min. Next, the samples were filtered through a black Nuclepore Track-Etch membrane (Whatman, UK) and stained with 10?μg/mL DAPI (4′,6-diamidino-2-phenylindole) for 20?min in the dark. Then, DAPI-stained cells from 10 randomly selected ocular fields were counted using a fluorescent microscope (Shanghai Cewei Photoelectric Technology Co., Ltd, China) equipped with a UV light. The microscopic view of fluorescent stained samples is presented in Fig. S2. The standard deviation of the selected 10 microscopic views counted in every sample was calculated, averaging 2.98 from 76 samples. The concentrations of airborne microbes were calculated from the average number of DAPI-stained cells using the following formula (Xie et al., 2017):

(1)C=Na×S×V2Sf×V1×V3

2.3. DNA extraction, PCR amplification and Illumina sequencing

Every air sampler was sampled at a rate of 16.7?L/min over an hour sampling period. Soil and leaf samples were also collected to evaluate potential sources of bacterial aerosols near the sampling site. After sampling, all samples were stored at ?80?°C until extraction of genomic DNA.

For each sample, genomic DNA was extracted using the OMEGA Soil DNA Kit following the manufacturer's instructions. Genomic DNA concentration and purity were measured using a Nano Drop ND-2000 (Nano Drop Technologies, Wilmington, DE) spectrophotometer. The extracted DNA was then used as the template for PCR amplification. The primer set 338F (5′-ACTCCTACGGGAGGCAGCA-3′) and 806R (5′-GGACTACHVGGGTWTCTAAT-3′) were used to amplify the V3–V4 hypervariable regions of the bacterial 16S rRNA gene. These region provide accurate taxonomic information at the family level. The master mix for the PCR includes 5?μL 5× reaction buffer, 5?μL 5× GC buffer, 5?μL dNTPs (100?mM), 1?μL each of the primer(10?μM), 2?μL DNA Template and 8.75?μL ddH2O, for the total volume of 25?μL per reaction. The PCR protocol was as follows: initial denaturation step at 98?°C for 2?min, followed by the 30?cycles with denaturation at 98?°C for 15?s, annealing at 55?°C for 30s, and elongation at 72?°C for 5?min. Then, the PCR products were purified using a PCR Purification Kit (Axygen Bio, USA) and pooled in equimolar concentrations of 10?ng·μl?1 before sequencing. Finally, paired-end sequencing of bacterial amplicons were carried out in a Miseq Illumina platform at the Personal Biotechnology Co., Ltd (Shanghai, China).

2.4. Statistical analysis

Least-Significant Difference (LSD) one-way analysis of variance (ANOVA) was carried out to examine significant differences in the relative abundances of bacteria between PM2.5, PM10and TSP. An independent sample t-test analysis was used to compare the mean concentrations of airborne microbes during haze and non-haze days. Spearman's rank correlation analysis was then used to examine correlations between environmental factorsand the airborne microorganisms. The analyses were performed in an IBM SPSS Statistics 22 for Windows, and a P-value <0.05 was considered statistically significant.

The R (x64 3.4.1) statistical computing environment was used for all community statistics and visualizations. The relationship between environmental factors and bacterial relative abundance and diversity indices was shown using a redundancy analysis (RDA).

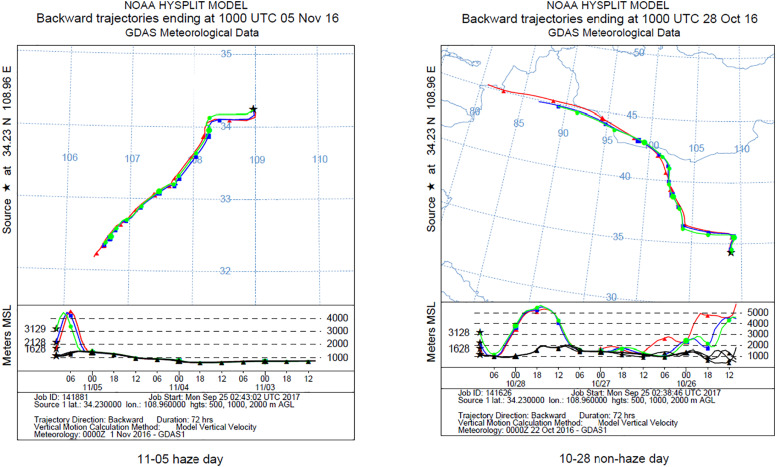

Backward trajectory analysis was also carried out though the Hybrid Single-Particle Lagrangian Integrated Trajectory model (HYSPLIT-4, http://ready.arl.noaa.gov/HYSPLIT.php) (Draxler and Rolph, 2013) to trace the source of air mass.

3.1. Concentrations of airborne microbes in PM2.5, PM10 and TSP.

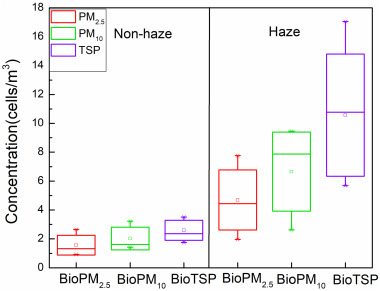

The concentration variations of airborne microbes in PM2.5 (BioPM2.5), PM10 (BioPM10) and TSP (BioTSP) during the sampling period are shown in Fig. 1. Results showed that the mean concentrations of airborne microbes in different sized PM during non-haze days and haze days was lowest in BioPM2.5 (1.57?±?0.68?×?105?cells/m3 and 4.69?±?2.08?×?105?cells/m3), followed by BioPM10 (2.03?±?0.79?×?105?cells/m3 and 6.65?±?2.74?×?105?cells/m3), and highest in BioTSP (2.60?±?0.69?×?105?cells/m3 and 10.57?±?4.23?×?105?cells/m3). All concentrations were significantly higher on haze days (P?<?0.01). This was in agreement with Dong et al. (2016) who found that the concentration of airborne microbes in TSP on haze days (7.09?×?105?cells/m3) was higher than that on non-haze days (6.55?×?105?cells/m3) in Qingdao. Further, BioPM2.5 – associated microbes during non-haze day and haze-day accounted for 60.38% and 44.37% in BioTSP, respectively, while in BioPM10 concentrations reached as high as 78.08% and 62.91% in BioTSP for haze and non-haze days, respectively. Wei et al. (2015a) found that viable BioPM2.5 in BioPM (>0.5?μm) in many cities located in Northwestern China (Gansu, Ningxia, and Shanxi) were lower, which might be attributed to more large-celled fungal spores present in the ambient air. Considering that the present sampling period was during the heating season in Xi'an, a large amount of dust was expected to be emitted, which in turn resulting in increased concentration of coarse particles. This was supported by a study of Huang et al. (2014), which showed that dust aerosol was the dominant contributor to PM mass in Xi'an. Therefore, the levels of BioTSP increased with PM, and the proportions of BioPM2.5 and BioPM10 in BioTSP were lower than the other cities.

1. Download high-res image (213KB)

2. Download full-size image

Fig. 1

Table 2 shows the correlation coefficients between environmental factors and concentrations of BioPM2.5, BioPM10 and BioTSP. The concentration of airborne microbes was positively correlated with AQI, SO2, CO and NO2 (P?<?0.01). AQI increased with PM concentrations. Our previous studies showed that increasing quantity of PM provided more surfaces where more airborne microbes could adhere to (Li et al., 2015; Li et al., 2017; Xie et al., 2017). Consequently, airborne microbes increased with PM, both were positively correlated with AQI. Since sulfate, nitrate, and carbonate transformed from SO2, NO2, and CO could be utilized by viable microbes as resources, microbes were notably positively correlated with these gaseous pollutants as well (Dong et al., 2016; Xie et al., 2017). In contrast, a significant negative relationship was observed between airborne microbes and wind speed, visibility or O3 (P?<?0.01), which were consistent with many previous studies (Fan et al., 2010; Gao et al., 2015; Hu et al., 2015; Lee et al., 2016; Li et al., 2015). Wind drives formation and spread of bioaerosols. Biological particles enter the atmosphere to form bioaerosols when the critical wind velocity exceeds 1–3?m/s (Borodulin et al., 2005). However, wind speed was negatively correlated microbial aerosols, because of the dilution effect of atmospheric diffusion may lead to a reduction in bioaerosol concentration when the winds are too strong. It is generally inferred that O3, due to its strong bactericidal effect, could cause death or inactivation of microorganism. Hence, O3 showed significant negative correlation with airborne microbes. Visibility was also negatively correlated with microbial concentration since haze pollution decreases visibility.

Table 2

• ??

• P?<?0.01 (2-tailed).

• ?

• P?<?0.05 (2-tailed).

3.2. Bacterial diversity in PM2.5, PM10 and TSP

The number of observed OTUs and diversity (mean?±?standard deviation) of atmospheric bacterial communities in PM2.5, PM10 and TSP are summarized in Table 3. Following quality filtering, the average number of high quality reads in PM2.5, PM10 and TSP were 28,344, 30,578 and 36,737, respectively. Community richness indices (Chao1 and ACE) in TSP (478.71 and 555.32) were higher than those in PM10 (378.25 and 430.79) and PM2.5 (304.67 and 348.24). Furthermore, the highest Shannon and Simpson indices, which are community diversity indices, were observed in TSP (4.79 and 0.90), followed by PM10 (3.64 and 0.75) and PM2.5 (2.89 and 0.65). Moreover, sequence clustering showed that the number of OTUs both in phylum and genus levels in TSP was significantly higher than that of PM10 and PM2.5. These indicate that the abundance and diversity of bacterial community in different particle sizes were different. Coarser PMs would also be expected to have higher bacterial abundance and diversity.

Table 3

OTUs: operational taxonomic units (97% similarity).

Apparently, aerosol size fraction influenced the diversity and composition of bacterial community. Bowers et al. (2013) found that the level of bacterial diversity in coarse size fraction (PM10–2.5) was roughly 80% higher than those observed in the fine size fraction (PM2.5). Ortegaretuerta et al. (2013) reported that most bacteria attached to PM derived from the surrounding environment were typically more diverse than free-living planktonic bacteria. Most bacteria are generally attached to coarse particulates, which has higher sheltered surface area, allowing the bacteria to be protected from UV exposure, in addition to becoming carbon and energy sources. These make coarse particulates more favorable for bacteria to survive and propagate. On the contrary, owing to the small surface area of fine particles, it is difficult for microorganism to attach. Moreover, as carriers of air pollutants, fine particles adsorb more chemical components which may be toxic for microorganism to survive (Eeftens et al., 2012).

3.3. Bacterial community structures in PM2.5, PM10 and TSP samples

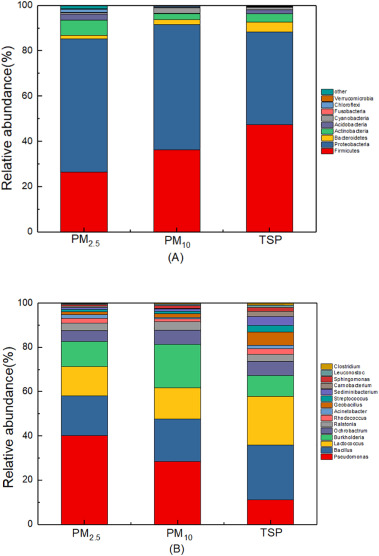

Fig. 2 shows the bacterial community structures in PM2.5, PM10 and TSP at the phylum (A) and genus (B) levels. At the phylum level (Fig. 2A), the dominant bacterial communities in PM2.5, PM10 and TSP were Firmicutes and Proteobacteria. Firmicutes accounted for 26.33%, 36.32% and 47.44%, respectively in the different particles, while it was slighlt higher for Proteobacteria at 58.94%, 55.24%, 40.81%, respectively. Interestingly, Firmicutes were highest in TSP. Gou et al. (2016) also reported that the Firmicutes could exist in the atmosphere preferentially as bacterial aggregates associated to larger PM. In contrast, Proteobacteria abundance decreased with increasing particle size.

1. Download high-res image (186KB)

2. Download full-size image

Fig. 2

At the genus level (Fig. 2B), Pseudomonas, Bacillus and Lactococcus were the top three genuses in the present air samples, accounting for 8.47–22.29%, 9.86–19.10% and 7.32–16.92% of the total high-quality sequences, repectively. However, the dominant genus varied with different size fractions. For example, in both PM2.5 and PM10, the most abundant were Pseudomonas, accounting for 22.29% and 17.65%, repectively, while it was Bacillus in TSP (19.10%).

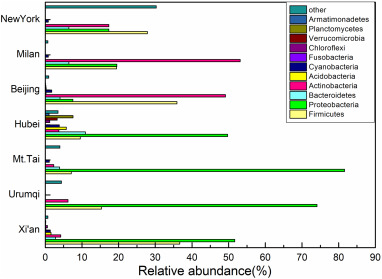

Fig. 3 shows the bacterial community structures in different cities at the phylum level. It can be seen that the dominant bacterial phylum were also Firmicutes and Proteobacteria in most cities. However, compared to our results, previously reported relative abundances of Actinobacteria were higher in Beijing, Milan and New York (Bertolini et al., 2013; Cao et al., 2014; Gou et al., 2016; Robertson et al., 2013; Wei et al., 2015b; Xu et al., 2016). Wei et al. (2015a) collected air samples from 40 cities in China and reported that five most abundant bacterial genera among the samples, were Bacillus (63.67%), Methylobacterium (3.61%), Lacococcus (3.42%), Massilia (2.60%) and Sphingomonas (2.46%). Their relative abundances were not only different from the present results obtained in Xi'an, but also different from data detected in other sampling sites. For example, the dominant genera in Ji'nan were Lactococcus (43.4%), Bacillus (28.4%) and Pseudomonas (7.6%) (Xu et al., 2017). In contrast, the three most abundant genera in Beijing were Pseudomonas (53.38%), Lactococcus (16.09%) and Leuconostoc (4.29%) (Wei et al., 2016). These differences could be mainly due to the different sources in different sampling sites and seasons. More details about the reasons will be discussed below.

1. Download high-res image (277KB)

2. Download full-size image

Fig. 3

3.4. Microbial pathogens in the different samples on haze days

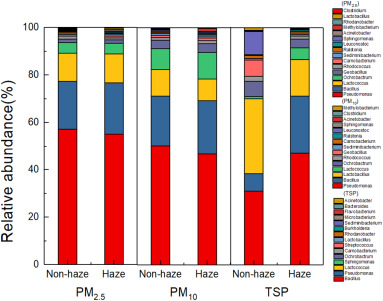

The 15 most abundant bacterial genus in PM of different sizes on both haze and non-haze days are shown in Fig. 4. For the airborne bacteria, dominant genera for both haze and non-haze conditions were similar. Also, the relative abundances of the dominant genera in PM2.5, PM10 and TSP did not show significant differences on haze and non-haze samples (P?>?0.05). This suggests that there was no significant correlation between bacterial communities and haze pollution. Little information is available about airborne bacterial communities in PM2.5, PM10 and TSP during haze and non-haze days. We speculated that the relative abundances of some genera may have been influenced by the characteristics of the sources of bioaerosols. Similarly, Du et al. (2017) observed bioaerosols, mainly coming from the surrounding environment, usually remained stable in a short time span unless affected by high-speed wind and precipitation. In Xi'an, since the microbial communities in samples from autumn and winter were similar, we could hypothesize that the bioaerosols for these two seasons has similar sources. Xie et al. (2017) suggested that the high concentration of toxic and hazardous substances in PM during haze days had adverse effects on the concentration of bioaerosols. However, we did not find that toxic and hazardous substances in PM had obvious influence on bacterial communities. Wei et al. (2015a) also found that there were no pronounced differences in abundances of major bacterial genera between haze and sunny days in Beijing. Meanwhile, Zhen et al. (2017)reported that air pollutants made little contribution to the airborne bacterial community. This was different from Gao et al. (2017), who observed that atmospheric pollutants explained most of the variation (31.90%) in community structure of PM, and thus, PM was identified as the main factors shaping the bacterial communities. Zhen et al. (2017) further reported that the impact of environmental factors on bacterial communities differed with seasons. Hence, the relationship between haze pollution and bacterial communities may not be same among regions and seasons. The relationship between environmental factors and bacterial communities will be discussed below.

1. Download high-res image (191KB)

2. Download full-size image

Fig. 4

Several potential pathogens at the genus level were identified in this study, such as Pseudomonas, Acinetobacter, Serratia, Streptococcus, Neisseria, Clostridium, Staphylococcus, Mycobacterium, Corynebacterium, and Micrococcus. These microbial genera are known to be harmful and could cause human diseases, although their relative abundances in the sample were not high. Acinetobacter is a conditional pathogenic bacteria, which can cause infection in different parts of the human body, such as lung the leading to pneumonia etc. (Gou et al., 2016). Sepsis caused by Acinetobacter is also a major nosocomial infection (Bergognebérézin and Towner, 1996). As an opportunistic human pathogen, Pseudomonas aeruginosa can infect in any part of the body and tissues, often in burns or trauma sites (Michael et al., 2014). Serratia plymuthica, S.liquefaciens, S.rubidaesaand Neisseria meningitides could also cause disease through infection (Kurz et al., 2003). Corynebacteriumdiphtheriae is the pathogen responsible for diphtheria and cutaneous infection (Cantarelli et al., 2008).

Table 4 summarized the relative abundance of the potential pathogenic bacteria on the haze and non-haze days. Results showed that the relative abundance of Proteobacteria and Neisseria (P?<?0.05) appeared to increase during haze days while others decreased. Despite this, it is interesting to note that we still did not find any significant correlations between air pollution and certain bacterial pathogens. No evidence was established linking haze pollution with increased abundance of bacterial pathogens. Cao et al. (2014) once reported that sequences related to several respiratory microbial allergens and pathogens, like Streptococcus pneumoniae, increased with PM concentration, but was not true for all pathogens. Many other studies suggested that the potential health risk during the haze days was related to the microorganisms in the aerosols (Gao et al., 2015; Xie et al., 2017). This suggests that toxicity may be mainly attributed to the abiotic hazards, like toxic and hazardous chemical substances in PM instead of the pathogenic species. Another aspect that has not been explored in this study is the possible presence of some fungal pathogens and viruses, which could still be harmful to the human body. For example, some of fungal pathogens were detected in the PM from Urumqi (Gou et al., 2016). Du et al. (2017) found that the winter PM2.5 samples also harbored fungal pathogens, which were higher than the other seasons. Aspergillus fumigatus specifically, is a known major allergen and opportunistic pathogen, which appear to increase with PM pollution level. Human adenovirus, a dsDNA virus which can cause upper and lower respiratory tract infections in children, was also found abundant in a severe smog event in Beijing (Cao et al., 2014). However, little information is available for fungal pathogens and viruses present during haze and non-haze days. Abundance of pathogenic bacteria in the air also significantly varied among regions. For example, five pathogenic bacteria in Beijing were detected, including Streptococcus (0.47%), Prevotella (0.10%), Rickettsia (0.01%), Erysipelothrix (0.01%) and Enterobacter (0.001%) (Du et al., 2017). Some human pathogens were found in Hong Kong including Legionella, Pseudomonas, Shigella, Salmonella, Staphylococcus, Streptococcus(Woo et al., 2013), and in Hubei Province, Aeromonas, Coxie, Enterobacter, Escherichia, Shigella were observed (Wei et al., 2015b). Not only the relative abundances but also the genera of the dominant pathogenic bacteria were different from the present results. These differences could have resulted in varying epidemic associated with airborne microbes in different regions.

Table 4

• ?

• Indicates a statistically significant difference between haze and non-haze days. (P?<?0.05).

3.5. Relationship between airborne bacteria community and environmental factors

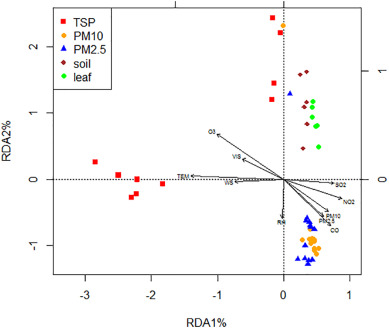

Assessing the effects of environmental factors on bacteria is necessary since they influence bacterial survival, growth and diffusion (Hwang et al., 2010; Zhong et al., 2016). The redundancy analysis (RDA) biplot (shown in Fig. 5) showed that certain environmental factors were distinctly correlated to different samples. Interestingly, only a total of 56.37% of the variance was explained by all the environmental variables combined. The first axis explained 39.5% of the variation of genus-environment relationship, and temperature (TEM), wind speed (WS) and SO2 were most relevant with the first axis. The second axis accounted for 6.5%, where humidity (RH) seemed to be the most relevant. Meanwhile, it is evident that the most important drivers of microbial community structure were TEM, O3 and NO2, which accounted for 70.06%, 11.45% and 9.14% of the variation, respectively. The order of the degree influence of these factors was as follows: TEM?>?O3?>?NO2?>?SO2?>?WS?>?CO?>?PM10?>?VIS (visibility)?>?PM2.5?>?RH. This was consistent with those reported by Sun et al. (2014), where temperature was identified as a key factor in the structuring of aquatic bacterial communities. Increased temperature would promote bacterial growth, and speed up convective air movements, enhancing bacterial dispersal in the atmosphere (Smets et al., 2016). Bowers et al. (2013) also found that two bacterial taxa were correlated with shifts in temperature over time. Zuma et al. (2009) showed that ozonehave stronger germicidal effectivity against gram-negative and gram-positive species than the free radicals. Von and Firsching (2000) also found that O3 was negatively correlated with bacterial aerosols, because the toxicity of O3 inhibits the growth of outdoor air bacteria. Cao et al. (2014) suggested that sulfate, ammonium, nitrate and organic matter were among the most nutrient sources, and altogether their relative abundance in PM2.5 and PM10 samples were 80% and 71% (w/w), respectively. Nitrogen oxides (NOx) and sulfur oxides (SOx) can be converted into secondary pollutants under appropriate atmospheric conditions (Wang et al., 2010). Although it is known that airborne bacterial concentrations could be influenced by heavy particle matter pollution, especially during the haze days, our present results suggest that PM had little effect on airborne bacterial communities than the other environmental factors. This also means that PM pollution had little impact on bacterial pathogens. The survival and growth of some bacterial pathogens are strongly influenced by meteorological factors. Although the relationship between airborne bacterial community and environmental factors were observed, the underlying mechanisms of these interactions remain unclear.

1. Download high-res image (82KB)

2. Download full-size image

Fig. 5

3.6. Potential sources of airborne bacteria

Previous studies indicated that majority of the categorized bacteria in the atmosphere were from terrestrial sources. For example, Pseudomonas, Sphingomonadales and Rhizobiales, which were identified in air samples, were known to be plant-associated bacteria (Fahlgren et al., 2011), while Acinetobacter and Serratia generally existed in water and soil (Hervàs et al., 2009; Iguchi et al., 2014).

Most of the studies classified bacterial sequences and determined their potential sources by aligning against reference sequences in the GreenGenes 16S rRNA gene database (Cao et al., 2014). However, studies determining bacteria presence in the atmosphere from local environment or atmospheric transfer are still lacking. Here, the bacterial samples from different media, including air, soils and leaf surfaces near the sampling sites, were compared to explore the potential sources of airborne bacteria, as also shown in Fig. 5. Results indicated that the difference in airborne bacterial communities between PM10 and PM2.5 was very minor, but there were significant differences between TSP and PM2.5 as well as between TSP and PM10. Bacterial communities from soils and leaf surfaces were not significantly similar to airborne bacterial communities as they did not cluster together (see Fig. 5), suggesting that the sources of airborne microbes in this study were not the local environment. It could have come from the different parts of the city or other regions by long distance airflow transport. The aerosols containing microorganisms can survive long-range transport from their sources (Yordanova et al., 2017). For example, Xu et al. (2016) reported that Cyanobacteria at Mt. Tai were more related to those found in the air mass from Yellow Sea (2.1%). It was also observed that Asian dusts could directly affect the airborne bacterial communities by air mass transport pathways (Jeon et al., 2011). Moreover, long-range transport of dust in the atmosphere is an efficient process for the dispersal of viable and non-viable bacteria in local, regional and even global scales (Hara and Zhang, 2012). Li et al. (2015) demonstrated that the air mass arriving at Xi'an on hazy days came from two main pathways: the southwest and southeast directions, instead of the Guanzhong Plain. Fig. 6shows the results of a 72-hour backward trajectory on 5th November (haze day) and 28th October (non-haze day). In this study, back trajectories during sampling period indicated that the air mass came from northwest direction during non-haze days (Fig. S3a). During the haze days, air mass mainly came from the southwest (Fig. S3b). These results supported our hypothesis that most of the airborne bacteria in Xi'an may come from the different parts of the city or other regions by long distance airflow transport.

1. Download high-res image (569KB)

2. Download full-size image

Fig. 6
